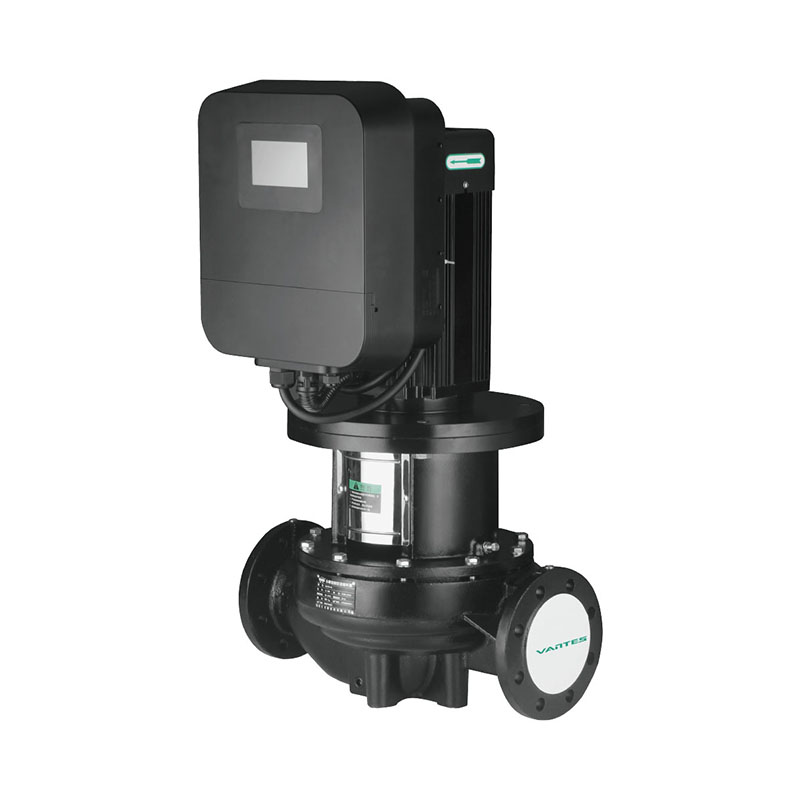

VGD Series Permanent Magnet Variable Frequency Pipeline Circulating Pump

The VGD Series Permanent Magnet Variable Frequency Pipeline Circulating Pump is a versatile and reliable product designed to cater to a wide range of applications, from domestic water supply to industrial liquid transportation. This pump is engineered to deliver  performance in various systems such as district heating, HVAC (heating, ventilation, and air conditioning), cooling systems, domestic hot water supply, and industrial liquid circulation systems.

Product Details

System Pressure:
The VGD Series pump can handle a maximum system pressure of 1.6 MPa. This pressure includes the sum of the inlet pressure and the pump's head. For systems requiring higher pressures, please specify these requirements at the time of order.

Applicable Media:
The pump is suitable for transporting clean water and other liquids with physical properties similar to clean water. The content of solid impurities should not exceed 0.2% by volume, with particle sizes not larger than 0.2mm. If the medium contains impurities larger than 0.2mm, please indicate this when placing your order.

Environmental Conditions:
The operating environment for the VGD pump should have an ambient temperature not exceeding 40°C and a relative humidity of no more than 95%.

Medium Temperature:
The pump can transport media with temperatures ranging from 0°C to 140°C, making it suitable for a variety of heating and cooling applications.

Power Supply:
The pump operates on a power frequency of 50Hz, with single-phase voltage rated at 220V and three-phase voltage at 380V. The voltage variation range is within ±10% of the rated value.

Advantage

Efficiency:
Permanent Magnet Motor: The use of a permanent magnet motor in the VGD Series ensures high efficiency and energy savings, which can lead to significant cost reductions over time.
Variable Frequency Drive: The variable frequency drive allows for precise control of the pump speed, optimizing performance and reducing energy consumption.

Reliability:
Durable Construction: The VGD Series pump is built to withstand demanding environments, ensuring long-term reliability and fewer maintenance.
High System Pressure: The ability to handle system pressures up to 1.6 MPa ensures the pump's robustness and suitability for high-pressure applications.

Easy Installation:
The VGD Series pump is designed for straightforward installation. Its compact design allows it to be easily integrated into existing systems without the need for extensive modifications.
Flexible Mounting Options: The pump can be installed horizontally or vertically, providing flexibility to suit different installation requirements.

Applications
District Heating Systems: The pump is ideal for circulating hot water in district heating networks, ensuring efficient heat distribution.
HVAC Systems: It provides reliable circulation of water in heating, ventilation, and air conditioning systems, maintaining good indoor climate conditions.
Cooling Systems: The VGD Series pump can effectively transport cooling water in industrial and commercial cooling systems.
Domestic Hot Water Supply: It ensures a steady and reliable supply of hot water in residential and commercial buildings.
Industrial Liquid Transport: The pump is suitable for various industrial applications, including the transportation of liquids in manufacturing and processing plants.

In summary, the VGD Series Permanent Magnet Variable Frequency Pipeline Circulating Pump is a highly versatile, efficient, and reliable solution for a wide range of applications. Its advanced features and robust design make it an good choice for both domestic and industrial uses, ensuring good performance and long-term durability.
